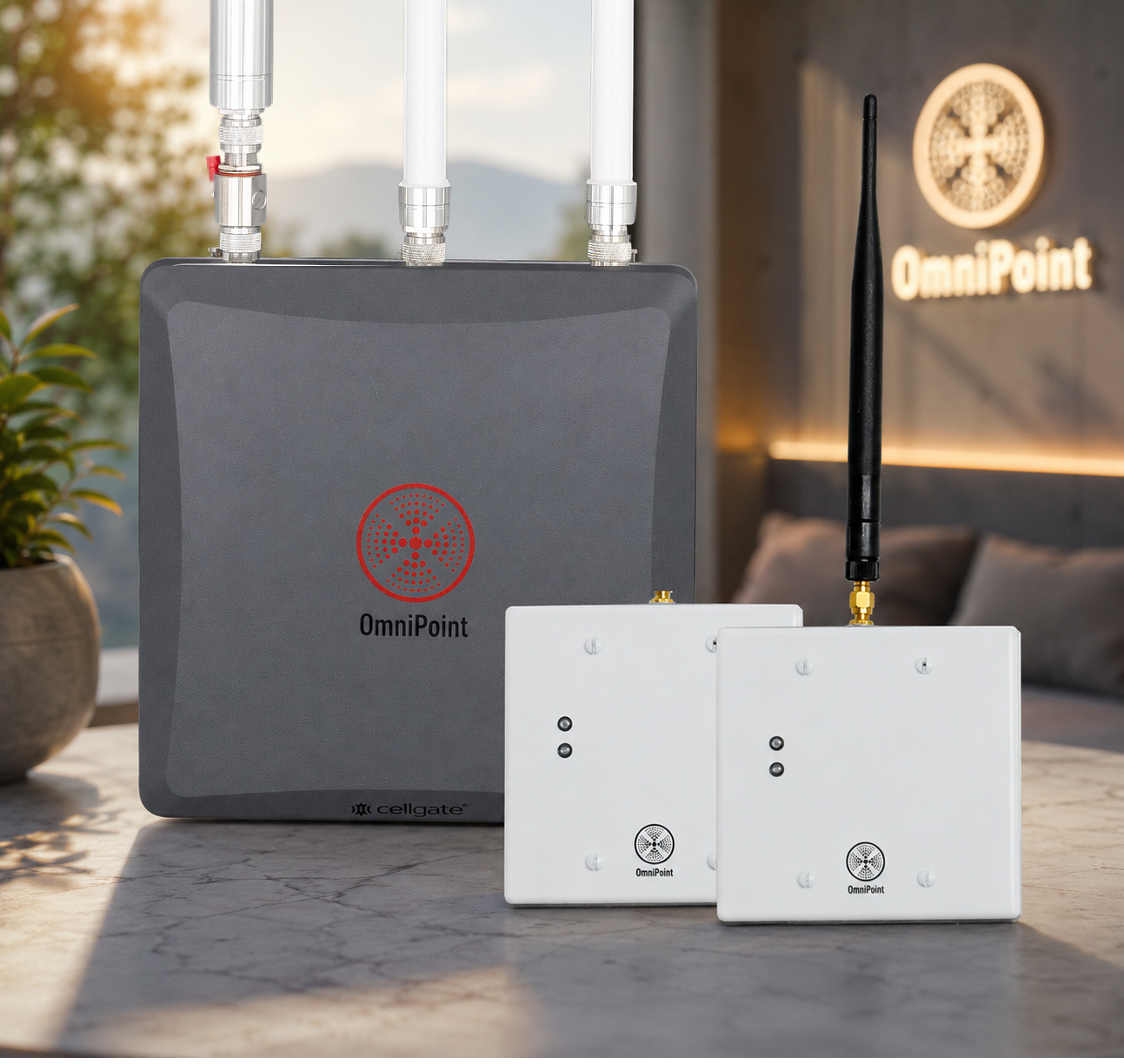

The OmniPoint® Wireless Multi-Point Access Control system is a wireless access control solution that uses a hub-and-spoke architecture to manage multiple entry points across a property. An OmniPoint Gateway serves as the communications hub, connecting to CellGate’s TrueCloud Connect™ platform through either a wired internet connection or cellular LTE. The Gateway communicates locally with Entry Point Modules (EPMs) using long-range LoRa technology, allowing access points to be installed up to one mile from the Gateway without requiring long-distance data wiring. Local wiring is only required at each entry point for power, the credential reader, and the electronic lock.
The system supports up to 50 entry points from a single Gateway, with additional Gateways available for larger properties. OmniPoint is designed to operate without line-of-sight requirements and works with CellGate CG Readers as well as any 26-bit Wiegand reader. Entry Point Modules are available with either internal or external antennas, store common access restrictions locally, and continue to process credentials if communication with TrueCloud Connect is interrupted. Each EPM is powered by 12 VDC or 24 VAC, is compatible with customer-selected electronic locks, and includes a fire alarm function that can trigger designated door or gate actions.
System administration is performed through the TrueCloud Connect™ platform, which enables centralized management of multiple properties from a single login. The platform integrates with Yardi and RealPage property management software to simplify user provisioning. Property managers can use the CellGate app on iOS and Android devices to create access codes and send momentary open or hold-open commands. Dealers and installers can activate Entry Point Modules in the field using the CG Installer app.
Features
- Wireless multi-point access control system
- Hub-and-spoke architecture
- Gateway connectivity through cellular LTE or wired internet
- LoRa communication between Gateway and Entry Point Modules
- Supports up to 50 entry points per Gateway
- Communication range of up to one mile
- No long-distance data wiring required
- No line-of-sight requirement
- Compatible with CG Readers and 26-bit Wiegand readers
- Entry Point Modules available with internal or external antennas
- Local credential storage within Entry Point Modules
- Fire alarm function
- Centralized management through TrueCloud Connect™
- CellGate app support for iOS and Android
- CG Installer app for field activation
OmniPoint Gateway
- Connects to TrueCloud Connect™ using cellular LTE or wired internet
- Communicates with Entry Point Modules over a LoRa network
- Supports up to 50 entry points
- Maximum range depends on installation height, site layout, and topography
- Includes a 5.8 dBi fiberglass omni-directional LoRa antenna, lightning arrestor, mounting bracket, and power supply
- Supports optional 3 dBi and 8 dBi LoRa antennas and LTE directional antennas
OmniPoint Entry Point Modules (EPM)
- Models:
- OP-EPM-DG (Internal Antenna)
- OP-EPM-DG-EXT (External Antenna)
- Standard double-gang size
- Compatible with any 26-bit Wiegand device
- Supports card readers, keypads, gates, and wireless remotes
- Stores common access restrictions locally
- Credentials continue to operate if TrueCloud Connect connectivity is lost
- Powered by 12 VDC or 24 VAC
- Compatible with customer-selected electronic locks
- Includes fire alarm functionality
Connecting Integrations
- TrueCloud Connect™ integration
- Yardi property management software integration
- RealPage property management software integration
Networks
| Connection | Details |
|---|---|
| Gateway to TrueCloud Connect™ | Cellular LTE (Verizon or AT&T) or Wired Internet |
| Gateway to Entry Point Modules | LoRa wireless network |
Technical Specifications
| Specification | Details |
| Maximum Entry Points per Gateway | Up to 50 |
| Maximum LoRa Range | Up to 1 mile (site dependent) |
| Gateway Dimensions | 8.5″ H × 8.5″ W × 3.5″ D (excluding antennas and connectors) |
| EPM Models | OP-EPM-DG, OP-EPM-DG-EXT |
| EPM Power | 12 VDC or 24 VAC |
| Reader Compatibility | CG Readers and any 26-bit Wiegand reader |
| Gateway Connectivity | Cellular LTE or Wired Internet |
| Local Network | LoRa |
Available Options
- 3 dBi LoRa antenna
- 8 dBi LoRa antenna
- Cellular LTE directional antennas
- Internal antenna Entry Point Module
- External antenna Entry Point Module
Warranty
Warranty information is not provided on the manufacturer’s product page.
