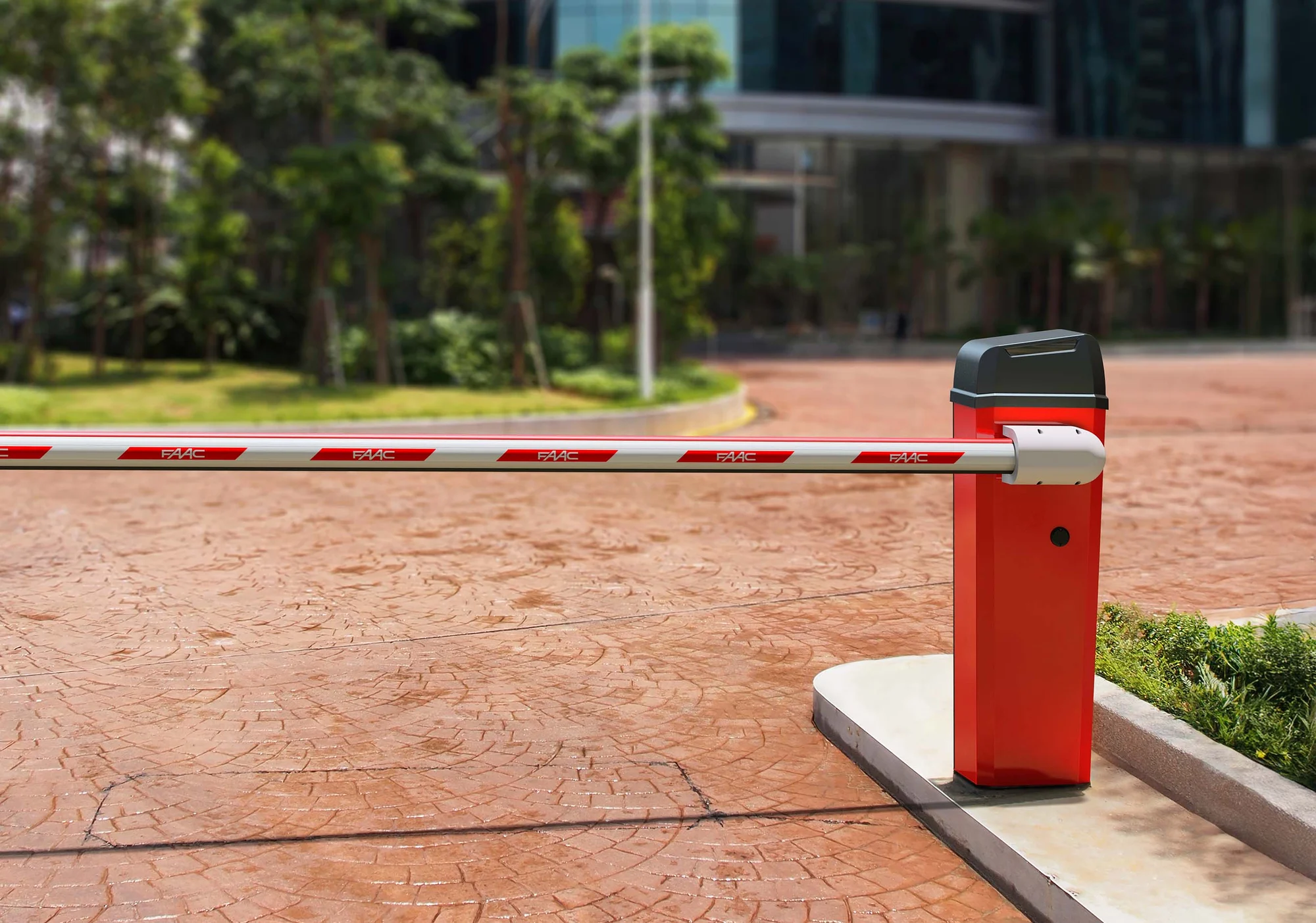

FAAC Automatic Barriers are designed for managing and controlling vehicle access across residential complexes, corporate entrances, industrial sites, highway toll gates, and public or private parking facilities. The product range includes barrier solutions with boom lengths from 2 to 8 meters and opening times ranging from 1.5 to 6 seconds, allowing selection based on application requirements and traffic conditions.
The range includes hydraulic, electromechanical, and Hybrid technologies to support different operational requirements. Depending on the selected model, features include adjustable force and speed, smooth acceleration and deceleration, electronic thermal protection, emergency battery backup, and operation in demanding environments.
Applications
- Residential complexes
- Corporate entrances
- Industrial sites
- Highway toll gates
- Public parking areas
- Private parking areas
- Vehicle access control applications
Features
- Boom arm lengths from 2 to 8 meters
- Opening times from 1.5 to 6 seconds
- Hydraulic, electromechanical, and Hybrid technologies
- Solutions for different access control requirements
- Designed for high-traffic applications
- Construction suitable for demanding weather conditions
- Multiple barrier models available for different operating requirements
Technology
The Automatic Barrier range is available with three drive technologies:
Hydraulic
- High power in a compact design
- Extended service life
- Resistance to harsh environments
- Mechanical force adjustment
- Smooth operation
- Reversible operator options
Electromechanical
- Simple mechanical design
- Competitive value
- Proven operation
- Application-specific solutions
Hybrid
- Combines hydraulic technology with 24V DC operation
- Electronic adjustment of force and speed
- Smooth acceleration and deceleration
- Energy-efficient operation
- Emergency battery backup
Motor Technologies
The range includes multiple motor technologies depending on the selected model:
- AC motors with integrated thermal protection
- DC motors with electronic thermal protection and adjustable speed and torque
- Brushless DC motors for intensive continuous operation with reduced heat generation and compact installation requirements
Available Products
| Model | Description |
|---|---|
| B614 | 24V Automatic Barrier |
| B680H | 24V Automatic Hybrid Barrier |
| 620 | 230V Automatic Barrier |
| 615BPR | 230V Automatic Barrier |
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Automatic Barriers |
| Boom Length | 2–8 m |
| Opening Time | 1.5–6 s |
| Available Technologies | Hydraulic, Electromechanical, Hybrid |
| Available Motor Types | AC, DC, Brushless DC |
